Wireless & IrSimple (TM) Connectivity!

Home Price Quote About Us Contact Us Order












-- ACTiSYS IrSimpleTM Product Showcase --

Engineering and Production ISO 9001:2008 Certified!

All IrSimpleTM Products Passed the Tough IrSimple Qualification! CE, FCC, RoHS and REACH compliant

All IrSimple Adapters support Windows 7/8/8.1/10/11 (32 & 64 bit)!

[NOTE]: For O.S. Compatibility check, go to COMPATIBILITY page.

　IrSimpleTM Adapters

IR4020U/IR4021U (IrSimple & IrDA VFIR/FIR USB Adapter, supports Windows 7/8/8.1/10/11, Linux/Mac)

IrS4020/IrS4021 (IrSimpleTM & IrDA® VFIR/FIR Windows Software and USB Dongle Bundle)- VFIR/FIR (16M/4M bps) & Windows  11/10/8.1/8/7/ Vista Ready!

IrS4020U/IrS4021U (IrSimpleTM & IrDA® VFIR USB Dongle) - VFIR/FIR (16M/4M bps) & Windows  11/10/8.1/8/7/Vista Ready!

IrS4020SW/IrS4021SW (IrSimpleTM & IrDA® VFIR Windows Software) - VFIR/FIR (16M/4M bps) & Windows 7/8/8.1/10/11 Ready!

　IrSimpleTM Probe Analyzer & Tester

IR9305 (IrSimpleTM Protocol Debug & Test Suite, 2 G -VFIR)- Windows  11/10/8.1/8/7 Ready (32 bit only)!

IR9005 (IrSimpleTM Protocol Debug & Test Suite -FIR)- Windows  11/10/8.1/8/7 Ready (32 bit only)!

IR9211 / IR9221 (IrSimpleTM & IrDA® Probe and Analyzer for SIR, MIR, FIR, VFIR)- Windows 7/8/8.1/10/11 Ready!

IrSimpleTM Adapter

IR4020U/IR4021U (IrSimple & IrDA VFIR/FIR USB Adapter, supports Windows 7/8/8.1/10/11, Linux/Mac)

  • This series has 2 models: IR4020U is VFIR (16 Mbps); IR4021U is FIR (4 Mbps)
  • Fully compliant to USB specification 2.0
  • Fully compliant to IrDA serial infrared physical layer specification 1.4
  • Supports Windows 98SE/2K/XP/Vista, Windows 7/8/8.1/10/11, Linux & Mac 10.2x or above (Power PC only; not Intel Based PC)
  • Full-speed USB device operation
  • Bus-powered device. Obtain power from USB port. No external power supply required.
  • Low power consumption in standby mode (Standby current is less than 0.5 mA)
  • Not occupy PC's COM or Parallel port and has no complicated hardware port and resource setting.
  • Note: The existing bundled driver could play IrDA function only! Still you can also run IrSimple application as long as you use compatible driver/software yourself.
    Please also refer to IrS402x, which is already bundled with IrSimple driver & software.

Order | Price List  Tech-Support


Click for detailed spec.

IrS4020/IrS4021 (IrSimple (TM) & IrDA (R) VFIR/FIR Windows Software and USB Dongle Bundle): Auto switch among IrDA, IrSimple-Bi & -Uni modes; In Primary or Secondary role; Supports VFIR/FIR/SIR & Windows 11/10/8.1/8/7/XP/2000.

  • Package includes ACT-IrS402xSW software and ACT-IrS402xU dongle. This series has two models: ACT-IrS4020 (VFIR) and ACT-IrS4021 (FIR).

  • Supports IrDA & IrSimple (Uni-Mode & Bi-Mode) in Primary & Secondary roles.

  •  Supports SIR (9.6 k ~ 115.2 kbps), MIR (0.576 Mbps), FIR (4 Mbps), & VFIR (16 Mbps) through USB 2.0 port (high speed, 480 Mbps) and Windows software.

  • Throughput achieved:
    IrSimple Uni-Mode: >3.59 Mbps (in FIR) and >11.33 Mbps (in VFIR)
    IrSimple Bi-Mode:   >3.52 Mbps (in FIR) and >10.06 Mbps (in VFIR).

  • No limit in File Size. (Tested up to 20MB).

  • Automatic selection among IrSimple-Uni, IrSimple-Bi, and IrDA classic modes!

  • Friendly and comprehensive Windows GUI for easy viewing and operation.

  • User can configure the Inbox folder.

  • Supports Windows 2000/XP/Vista/7/8/8.1/10/11.

  • OEM option with file watcher, sample utility program is available if required.

  • Compatible with All IrSimpleTM and IrSimpleShotTM (IrSSTM) certified DSC and camera phones as following Models:

    1. IrSimple DSC (Digital Cameras):

    FujiFilm: Fine Pix-F31fd, F40fd, F50fd, F100fd, Z5fd, Z10fd, Z20fd, Z100fd, Z200fd, A800, A820, A900, A920,

    2. IrSimple Camera Phones:

    Sharp: SH702iS, SH703i,SH704i, SH705i 810SH, 813SH, SH902iS, SH902iSL, SH903i, SH904i, 814SH, 815SH, 910SH, 912SH, 913SH, W51SH, W52SH, W61SH.

    Casio: W51CA, W53CA.; Hitachi: W51H, W52H.

    Kyocera: W51K, W52K.; Panasonic: W52P; Toshiba: W54T.

Order | Price List  Tech-Support

*1. Click for detail spec

**2. Click for Compatible List

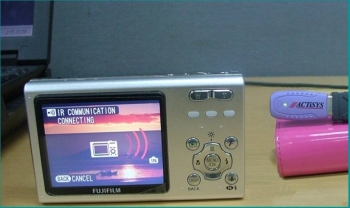

Click here to View Demo of Fast Photo Transfer!

Click to view details of fast photo transmit & receive modes

  • All trademarks, logos, organization & company names and product model names are owned by the respective owners.



IrS4020U/IrS4021U (IrSimple & IrDA VFIR/FIR Special USB Adapter)


  • This series has two models: ACT-IrS4020U for VFIR and ACT-IrS4021U for FIR.
  • They are the hardware portions of above models: ACT-IrS4020 & ACT-IrS4021. For details please refer to them.

Order | Price List  Tech-Support


IrS4020SW/IrS4021SW (IrSimple & IrDA VFIR/FIR Windows Software)
  • This series has two models: IrS4020SW for VFIR and IrS4021SW for FIR.
  • They are the software portions of above models: ACT-IrS4020 & ACT-IrS4021. For details please refer to them.

Order | Price List  Tech-Support





IrSimple Probe Analyzer & Tester

IR9305 (IrSimple Protocol Debug & Test Suite 2G - VFIR) : Supports Windows  11/10/8.1/8/7/Vista

  • 2nd-Generation IrSimple™ Protocol Debug and Test Suite

  • Supports VFIR, FIR and SIR through USB 2.0 port and Windows SW.

  •  Implemented all Uni-mode, Bi-mode and LDE (Long Distance Extension), Primary and Secondary Test Cases.

  • More flexible, much better timing resolution (1.085 μsec -SIR, 1 μsec -FIR/VFIR), to catch all frames, even if min. packet interval is 100 μsec or less.

  • The only tester implemented all 271 IrSimple Test Cases, in the new IrSimple Test Spec-v1.10.

  • User can configure multiple Negotiation Parameters

  • Customized file selection for DUT-as-Secondary Test Cases (supports Text, JPG, MPEG, etc.)

  • The only Tester that supports up to 32KB frame size.

  • Promotes inter-operability of IrDA-IrSimple Primary and Secondary devices.


Click for detailed spec

Order | Price List  Tech-Support

  • Facilitates testing and debugging of IrSimple LAP™, LMP™, SMP™ and OBEX™ Layers.

  • Facility to record raw binary data, and it can be reviewed using ACTiSYS Probe Software (ACT-IR92xx)

  • Test software and Debugger intelligence can be easily upgraded and expanded.

  • Friendly and comprehensive multi-window GUI for easy viewing & operation.

  • Supports Larger file size (Tested up to 20MB).

  • Facilitates to test & debug several Test Cases of one Test Group by selecting SW once.

  • Detailed information regarding test progress, test results and violations are displayed in different color, in separate windows, for each Test Case.

  • Debugger module describes the reason for Test Failure in every IrSimple Test Case.

  • User can customize Test Cases per features.

  • User can run IR9305SW easily without knowing IrDA-IrSimple Test Specification in detail.

  • Automatically generates Official IrSimple Test Report. Also generates Summary Report, Frame History Report and Timing Reports.

  • Supports Windows 2000, XP, Vista and Windows  7/8/8.1/10/11.

  • ACT-IR930xD is powered by USB. The same device is used for all other ACTiSYS IrDA®-IrSimple™ Protocol Test Suites

  • You can easily run different IrDA Protocol Test Suites, by switching among Test Programs.

  • Select "Report" option in Toolbar, which will allow viewing the Test Result in HTML View.

IR9005 (IrSimple Protocol Debug & Test Suite - FIR): Supports Windows  11/10/8.1/8/7/Vista

  • Facilitates testing and debugging of IrSimple LAP, LMP, SMP and OBEX Layers.

  • Supports both IrSimple Primary and Secondary devices.

  • Supports IrDA-D1.1 FIR (4 Mbps), MIR (0.576 & 1.152 Mbps) and SIR (9.6~115.2 kbps) through USB1.1 port and Windows software.

  • The only tester that implemented all 209 IrSimple Test Cases, as per IrSimple Test Spec-v1.0.

  • Test software and Debugger intelligence are easily upgradeable and expandable.

  • Recently approved by IrDA as the "official" IrSimple test tool to qualify IrSimple devices.



Click for detailed spec

Order | Price List  Tech-Support

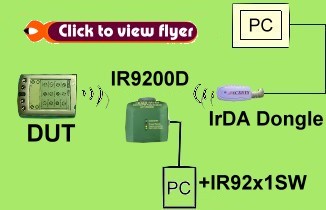

ACT-IR9211, ACT-IR9221 (IrSimple & IrDA Probe and Analyzer for SIR, MIR, FIR, VFIR)

  • ACT-IR9211 & ACT-IR9221 both support IrDA SIR (9.6~115.2 kbps), MIR (0.576 & 1.152Mbps), FIR (4Mbps) and ACT-IR9221 also supports VFIR (16Mbps) through USB 2.0 port and Windows software

  • Supports IrSimple protocol stack

  • Facilitates recording & debugging of LAP, LMP, TinyTP, SMP, OBEX and IrSimple layers.

  • Promotes inter-operability of IrDA® and IrSimple Primary and Secondary devices

  • Online Display during recording

  • Supports both Bi-Mode and Uni-Mode

  • Debugging and Analyzing intelligence are easily upgradeable and expandable.

  • Supports Windows XP/2K & Vista/Windows 7/8/8.1/10/11.




Click to See Also more details

Order | Price List   Tech-Support
