    Pocket IrDA® and Raw IR Flash Disk

    IrDA Printer Adapters

   IrDA PC RS232 and USB Adapters (Needs No External Power)

   IrDA Intelligent Embedded RS232 & USB Adapters and Internal Modules

     Raw IR (IrPHY only) PC or Embedded RS232 and USB Adapters
 Cables & Accessaries

 IrDA Protocol IC

   IrDA SIR Encoder/Decoder IC    IrFM - IrDA Wireless Mobile Payment

   IrDA Hand-held BER Tester

    IrDA Certification Test Center

  [NOTE]: For O.S. Compatibility check, go to COMPATIBILITY page.

Pocket IrDA & RAW IR Flash Disk

ACT-IR321U Pocket RAW IR Flash Disk and ACT-IR322U Pocket IrDA Flash Disk

  • A pocket-size data transfer device, collects data wirelessly from IrDA® or Raw IR-enabled industrial or medical devices, stores and sends this stored data to PC, wirelessly via IR.
  • Can also download file from PC, and stores and sends it to industrial or medical devices, to update or program its firmware, or change settings, wirelessly via Infrared.
  • ACT-IR322U supports IrDA-IrLAPTM, IrLMPTM, IASTM, and optional IrComm, or OBEX server/client protocol layers, in both Primary and Secondary modes, at 9.6k~115.2k bps.
  • ACT-IR321U supports IrDA-IrPHYTM (Raw IR) at data rates, 2.4k to 115.2k bps.
  • Through its standard mini-USB/type B connector, can easily connect to PC-USB port, to charge its internal Lithium Ion Polymer battery.
  • Rechargeable (Powered via USB) battery can last approximately 6 days, in normal usage.
  • Stores collected data in 4 MB flash memory, optional 8 MB memory.

  • 4 buttons with the corresponding LEDs, enable friendly and easy data transfer, in the field with industrial or medical devices, and in the office with PC, all wirelessly.
  • If opposite device (e.g. Healthcare device) sends IrObject (OBEX PUT) data, ACT-IR322U will act as OBEX server and stores this data to internal flash memory. Later, it can act as OBEX client to send this stored (OBEX PUT) data to IrDA-ready PC (e.g. PC with attached IrDA dongle), and vice versa: from PC to ACT-IR322U, and to Healthcare or Industrial devices.
  • A truly compact and convenient alternative to Infrared-enabled PDA or data logger!

  • Note:

    1. IR322U can only interface with PC via your existing USB-IrDA adapter, ACT-IR200xUL and Windows Application software!

    2. USB port is "only" for charging the battery inside IR322U, needs no driver and you can "ignore" any driver warning or error message!

 Order | Price   Tech-Support



            (Click To View Details)

(Video demo on Youtube)

IrDA Printer Adapters

  Approved as a full "IrReady" status.

IR100M (Parallel Printer Adapter with CEN36 Pass-through, AC Powered)

  • IR100M series is compatible with all Centronics-B (36 pins) parallel printers that are compatible with DOS. Also compatible with most Centronics-B printers that their Windows printer driver use LPT port with proper driver.

    If the printer or multi-function model can not work with Microsoft Windows LPT port or DOS, it will likely not work. However, some multi-function printer (MFP) models have been tested to work well with IR100M series. Please e-mail irda-info@actisys.com for updated printer models".
  • IR wireless printing directly from your IrDA devices.
  • You can still print directly from desktop or LAN by connecting the printer cable to the built-in pass through connector.
  • Automatic switch between mobile IR or desktop cable-based printing.
  • LED's indicate transmission speed and printing status.
  • If your printer's Centronics36 connector is hidden inside ( such as certain LaserJet models), you need to order a CEN36M/F cable (ACT1-203) to connect to IR100M
  • Please check the printer adaptor compatibility list before you order IR100M.

Order | Price List   Tech-Support


Click for detailed spec.

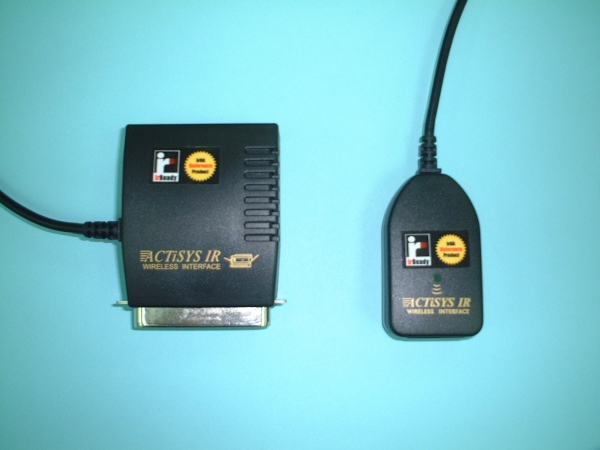

IR100MP (Parallel Printer Adapter w/o Pass-through, Needs No External Power!)
  • No External Power, No Battery--IR 100MP is the only IrDA printer adapter without external power or battery requirement.
  • Most efficient and IrDA compliant protocol stack built in, compatible with wide range of IrDA enabled devices and Operating Systems (including all Windows O.S.).
  • IR 100MP enables the most reliable and efficient IR wireless data transfer and quick and easy wireless printing.
  • Compatible with Palm O.S.-,Windows CE-, Symbian-based PDA, IrDA-enabled cellphone, smart phone, industrial data terminal , notebook PC, and consumer devices.
  • IR Print Application Software For PDA--Available separately and as free demo, OEM driver is also available.
  • ACTiPrintCE--The premier mobile printing solution for WindowsCE-based Pocket PC. It prints Pocket Word and rich text (RTF) documents with full formatting, color and images, Emails, and plain text (TXT) files. It prints to a wide variety of infrared (or IR adapter-enabled) parallel and serial printers.
  • ACTiPrintPalm: The easy to use mobile printing solution for Palm O.S.-based handheld devices. It prints Memo, Email, Contact, Calendar, Todo, to most infrared (or IrDA adapter-enabled) parallel and serial printers.

Order | Price List  Tech-Support


Click for detailed spec.

(Check Compatibility here)

IR100MU (IrDA-USB Printer Adapter)

  • Simply attach to a printer using USB port and gives printing from the IrDA enabled devices.
  • Supports all SIR speeds (9.6k, 19.2k, 38.4k, 57.6k and 115.2k bps). Compatible with most IrDA devices with IrLPT protocol such as notebook PC, Cellphone, Modem, Instruments, Data Terminals, Digital Camera, Image Capture Devices and others
  • Easy to use and no driver is required. USB-RJ45 conversion cable plays as an interface between ACT-IR100MU and USB cable from printer to enable the printer wireless capability. (Optional USB Printer cable USB type A-B with 180 cm: ACT1-213 or 120 cm Conversion cable ACT1-214 is available for order also.- see NOTE below)
  • True PnP (Plug And Play) and hot insertion capability
  • Compliant with USB 1.1 specification (HOST) and IrDA (IrLPT 1.4) specification
  • Obtains power from AC power adapter: 7.5 V DC 300 mA; power jack pin 1.3 mm dia; Inside positive Ve polarity.
  • Low power consumption.
  • Compact size.
  • NOTE: The bundled 10 cm conversion cable (RJ45 male-to-USB type A female) will NOT connect to the USB type B connector of USB printers. This short cable connects to IR100MU's RJ45 port and USB printer cable's USB type A male connector. We assume users already have USB-A/B printer cable with their USB printers to connect to PC.
    But if your USB printer doesn't bundle with, and you have not bought any USB-A/B printer cable, then you'll need to buy our ACT1-213 cable, the standard USB printer cable (USB type A male-to-USB type B male) OR
    120 cm ACT1-214  longer conversion cable to direct connect to printer.

Order | Price List  Tech-Support


Click for detailed spec.

(Check Printer Compatibility here)

ACTiPrintCE SW, ACTiPrintPalm SW (IR Print Software for Windows CE & Palm)

  • The Premier Mobile Printing Solution for the Pocket PC.
  • Prints Pocket Word documents, Emails, rich text (RTF) and plain text (TXT) files.
  • Pocket Word and RTF files are printed with full text formatting, including multiple fonts, text attributes (color, plain, bold, italic, underline, strike-through) and justification (left, center right).
  • Images contained within documents are also printed. Emails and plain text files are printed using any available font. ACTiPrintCE prints to a wide variety of infrared and serial printers.

Order | Price List  Tech-Support


Click for detailed spec.

IrDA PC RS232 and USB Adapters (Needs No External Power)

 IR100UD/IR120UD/IR100UD-v2/v3 (Intelligent dongle) (USB to IrDA SIR Adapter, with optional IR8260D evaluation Kit, OK for Mac OS, Android/ Windows 7/8/8.1/10/11 32&64bit)
  • Supports mandatory IrDA® layer: IrPHYTM, IrLAPTM, IrLMPTM,, TinyTPTM and IASTM.

  • Supports upper layers IrCOMMTM, IrLPTTM, and OBEXTM

  • Supports both IrDA Primary and Secondary mode, changeable by COMSET utility.

  • Supports host baud rate from 1.2 kbps to 115.2 kbps, which is changeable by COMSET utility. IrDA baud rate from 9.6 kbps to 115.2 kbps, which is flexible setting by IrDA devices.

  • [Factory Default Setting]: Baud rate =115.2k bps;8N1

  • Supports Windows 98/ME/2000, Windows XP SP2/Vista/7/8/8.1/10/11(32 & 64 bit), Windows Server 2003/2008 (32 & 64 bits), Mac OS (both Intel & Power PC), Android, Linux, Windows -CE (ARM & x86)

  • USB to RS232 Serial conversion device and its driver creates Virtual COM port, which has Less Latency time compared with any other virtual COM port, average 1.5 ms. while that of a real COM port is about 0.5ms.

  • Fully compliant with USB 2.0 (Full speed, 12 Mbps).

  • Two chips in this dongle: USB chip and IrDA chip. USB chip has 256 bytes outbound buffer and 256 bytes inbound buffer.

  • Nothing or minimum changes in user software, which are already working with ACT-IR100SD RS232 serial adapter.

  • Power supplied from USB directly.

  • Evaluation Kit Full Set is ACT-IR100UDK/100UDK-v2/v3, which includes: ACT-IR100UD(-v2/v3) and ACT-IR402xU or IR2012UL (IrDA FIR USB adapter)..

Order | Price List  Tech-Support

Click for detailed spec.


IR210L (Low-Speed IrDA Motherboard Adapter)
  • Plugs easily into IrDA-SIR ready desktop PC motherboard.
  • Gives you the full IrDA speeds from 9.6K to 115.2K bps!
  • Back panel bracket/cable assembly included.

Order | Price List  Tech-Support




Click for detailed spec.
IR220L+/IR200L/IR220Li (PC RS232 Adapters with either "Native" Windows IrDA Driver or RAW IR)
  • Easily connects to the serial port on any computer. No power needed!
  • Data transfer and record synchronization wirelessly from IrDA portable devices.
  • If using IR220L+ or IR200L for IrDA® (improved protocol) application, driver is already built into all Windows up to Windows 7 (Note: Not including Windows 8) by Microsoft Corp. For Windows 95 users, please download driver W95IR.exe from http://www.microsoft.com/windows95/downloads/contents/wurecommended/
    s_wucommunications/w95irda/default.asp
    or http://www.actisys.com/Downloads.html.
  • If all are used for RAW IR application, it instantly converts RS232 Port without any IrDA protocol SW required and can use existing application SW directly. They are all O.S. independent in such case.
  • IR communication distance from 0 cm to 200 cm without any external power!

Order | Price List  Tech-Support


Click for detailed spec.
IR220LR/LRS/LRB0/LRN#(PC RS232 Adapters for Ruggedized, Industrial Applications)
  • Endure tough weather or environment!
  • Operates under extended temperature range and meets NEMA specification.
  • Optional cable with four different types:

    220LR        --RJ45 Cable
    220LRS      --RJ45 Shielded Cable
    220LRB0    --RS232 DB9F Cable
    (above 3 types provide 4 speeds 9.6, 19.2, 57.6, 115.2 kbps which user can dynamically set one of them on the application software.)
    220LRN  --RS232 DB9F Cable (
    # is customized single speed factory preset; 96 for 9.6,
                       19 for 19.2, 57 for 57.6, or 115 for 115.2 kbps)

Order | Price List  Tech-Support


Click for detailed spec.
  Compatible with LASCAR’s PANEL-IR PCBA module.

IR220LDB-LA (RS232 Raw IR Adapter PCBA for Display Panel)
  • Uses IrDA-v1.0, RAW IR communication standard.
  • Connects to microcontroller, UART, or EasyLog module.
  • Half duplex communications.
  • 10-way pin header.
  • Supports 9600 bps (Other data rates are available by request).
  • IR pulse: 1.63 µS.
  • No IrDA protocols supported, supports only Raw IR.
  • Compatible with LASCAR’s PANEL-IR PCBA module.
  • Default Baud Rate: 9.6 kbps

Order | Price List  Tech-Support


Click for detailed spec.

ACTiLinkACPI SW (Works with IR220L+ to Enable RS232 Port Power, for Notebook PC)

  • Fix up ACPI problem to enable power for IR220L+, IR220L and IR200L.
  • Supports Windows 2000/XP Operating System Only.

Order | Price List  Tech-Support


Click for detailed spec.

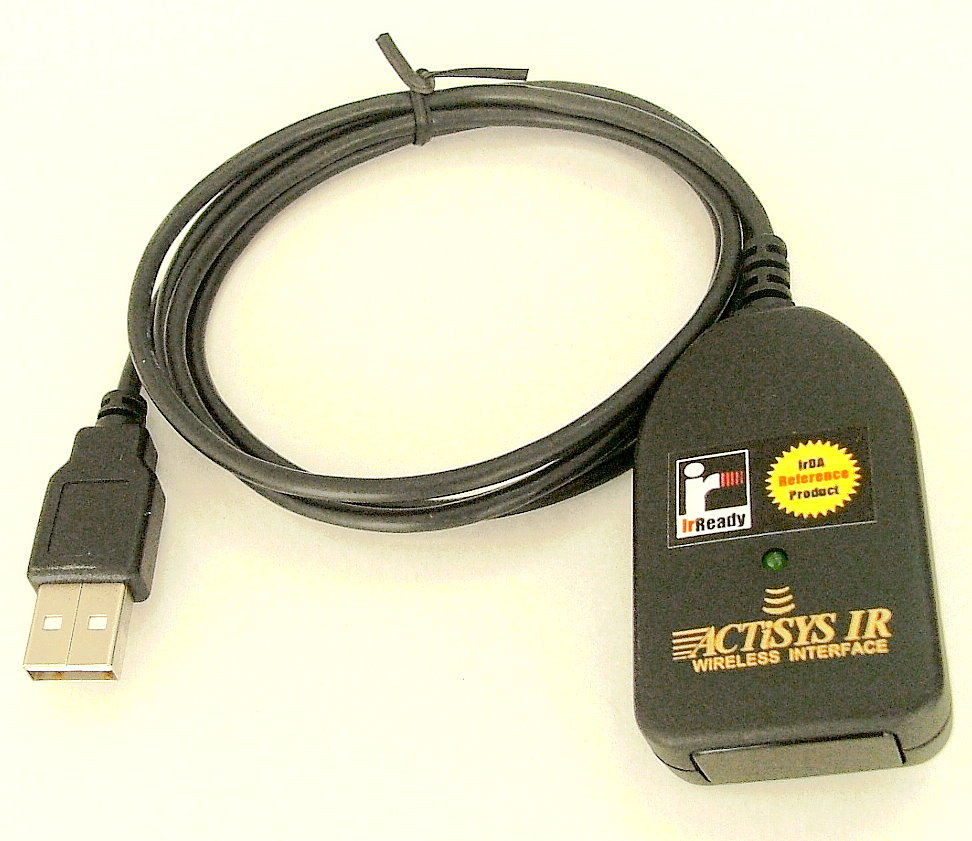

IR2002UL (IrReady FIR PC-USB Adapter supports Windows 11/10/8.1/8/7/Vista/Windows CE/Mac/Linux, Windows server2003)
  • Easily connects to the USB port on any PC. No power needed!
  • Gives you the full IrDA speeds from 9.6K to 4M bps!
  • Supports Windows 98SE/ME/2000, Windows XP, Vista & Windows 7/8/8.1/10/11 & Windows server 2003 (32 & 64 bit) , with WHQL certified; Windows CE 4.2 & 5.0 (USB host), Linux & .Mac 10.2 (IPower PC based)
    Note: there is some issue with Mac OS IrDA stack, so please contact Tech-Support before buying for Mac OS.
  • For Windows 11/10(32-&64-bit) OS support:
    Please contact ACTiSYS' T-S team by an email, tech-support@actisys.com, for Windows 11/10, 32-&64-bit OS compatible driver and workaround solution.
  • Key parameters programmable (Extra BOF's; Min. TAT; Speed Enable; Read Depth, Read Threshold; etc.)
  • Note (IrComm issue): If you use IrDA-OBEX, these USB-IrDA adapters support Windows 7/8/8.1/10/11-32 and 64 bit. But, if you use IrDA-IrComm, you'll need IrComm2K ( free software from 3rd party) for all Windows O.S., including Windows 11/10/8.1/8/7-32 bit. However, IrComm2K does NOT support 64bit. then please use our once-for-all solution, ACT-IR100UD(-v2), the Intelligent USB-IrDA adapter.

Order | Price List  Tech-Support


Click for detailed spec.

IR2012UL (IrReady FIR PC-USB Adapter supports Windows 11/10/8.1/8/7/Vista/Windows CE/Mac/Linux, Windows server2003)
  • Easily connects to the USB port on any PC. No power needed!
  • Gives you the full IrDA speeds from 9.6K to 4M bps!
  • Supports Windows 98SE/ME/2000, Windows XP, Vista & Windows 7/8/8.1/10/11 & Windows server 2003 (32 & 64 bit)
    Note: there is some issue with Mac OS IrDA stack, so please contact Tech-Support before buying for Mac OS.
  • For Windows 11/10(32-&64-bit) OS support:
    Please contact ACTiSYS' T-S team by an email, tech-support@actisys.com, for Windows 11/10, 32-&64-bit OS compatible driver and workaround solution.
  • Key parameters programmable (Extra BOF's; Min. TAT; Speed Enable; Read Depth, Read Threshold; etc.)
  • Note (IrComm issue): If you use IrDA-OBEX, these USB-IrDA adapters support Windows 7/8/10/11-32 and 64 bit. But, if you use IrDA-IrComm, you'll need IrComm2K ( free software from 3rd party) for all Windows O.S., including Windows 11/10/8/7-32 bit. However, IrComm2K does NOT support 64bit. then please use our once-for-all solution, ACT-IR100UD(-v2), the Intelligent USB-IrDA adapter.

Order | Price List  Tech-Support


Click for detailed spec.

IR4002US (IrDA FIR PC-USB, Thumb-Size Adapter supports Mac, Vista/Windows 11/10/8.1/8/7, Windows CE/Linux, Windows server2003
  • Wireless data transfer for PC's USB port
  • IR data rates from 9.6 Kbps to 4Mbps
  • Thumb-size USB-FIR (4Mbps) adapter, the smallest on the market
  • Supports Windows 11/10/8.1/8/7/Vista & XP (32 & 64 bit), Windows 2000/ME/98SE; Windows server 2003, Windows CE4.2&5.0, Linux and Mac10.2 (Power PC).
    Note: there is some issue with Mac OS IrDA stack, so please contact Tech-Support before buying for Mac OS.
  • For Windows 11/10(32-&64-bit) OS support:
    Please contact ACTiSYS' T-S team by an email, tech-support@actisys.com, for Windows 11/10, 32-&64-bit OS compatible driver and workaround solution.
  • 100cm cable included for desktop PC
  • Note: please refer Note on IrComm issue on IR2002UL.

Order | Price List  Tech-Support


Click for detailed spec.

IR4020U/IR4021U (IrSimple & IrDA VFIR/FIR USB Adapter, supports Windows 11/10/8.1/8/7,Vista, Linux/Mac)    IrSimpleTM

  • This series has 2 models: IR4020U is VFIR (16 Mbps); IR4021U is FIR (4 Mbps)
  • Fully compliant to USB specification 2.0
  • Fully compliant to IrDA serial infrared physical layer specification 1.4
  • Supports Windows 98SE/2K/XP/Vista, Windows 7/8/8.1/10/11, Linux & Mac 10.2x or above (Power PC only; not Intel Based PC)
  • For Windows 11/10(32-&64-bit) OS support:
    Please contact ACTiSYS' T-S team by an email, tech-support@actisys.com, for Windows 11/10, 32-&64-bit OS compatible driver and workaround solution.
  • Bus-powered device. Obtain power from USB port. No external power supply required.
  • Low power consumption in standby mode (Standby current is less than 0.5 mA)
  • Not occupy PC's COM or Parallel port and has no complicated hardware port and resource setting.
  • Note: The existing bundled driver could play IrDA function only! Still you can also run IrSimple application as long as you use compatible driver/software yourself.
    Please also refer to IrS402x, which is already bundled with IrSimple driver & software.

Order | Price List  Tech-Support


Click for detailed spec.


IrDA or IR Embedded RS232 Adapters and Internal Modules
  Instantly Convert Rs232 Port to IrDA, Without Special IrDA SW

IR100SD, IR100SL&IR100SLM(already upgraded to IR100SD), IR100SL-i, IR100Sx Comparison Table
  • Instantly convert RS232 Port to IrDA, without special IrDA protocol SW and use existing application SW.
  • IrDA design in, made easy and quick: ACT-IR100S
  • Factory adjustable HW or SW flow control.
  • [Factory Default Setting]: Baud rate =115.2k bps;8N1
    IR100Sx Comparison Table

Order | Price List  Tech-Support


Click for detailed spec.

IR110SD (Embedded RS232 Adapter with IrPHY+Protocol, Selectable Host Baud Rate; Battery Operated)

  • Supports mandatory IrDA layer: IrPHY, IrLAP, IrLMP and IAS.
  • Supports upper layers TinyTP, IrCOMM, IrLPT, and OBEX transport.
  • Supports host baud rate from 1.2 kbps to 115.2 kbps, which is changeable by utility; IrDA baud rate from 9.6 kbps to 115.2 kbps, which is flexible setting by IrDA devices.
  • Supports both IrDA Primary and Secondary mode, changeable via Comset_IR100SD.exe.
  • [Factory Default Setting]: Baud rate =115.2k bps;8N1
  • Battery operated intelligent adaptor; Optional AC power adapter available.
  • No driver is needed.
  • IR frame and Host buffer are 2048 bytes separately.
  • Supply voltage: 6.0 V to 12 V.
  • Power consumption: 1.650 mA on standby mode, 60 mA on active mode.
  • Supports 3 wires host interface (Tx, Rx and GND).
  • Interface to Host:
    - Full duplex asynchronous serial (TXD, RXD)
    - Hardware flow control (RTS, CTS)
    - Optional line status for link control (DTR, DSR)

Order | Price List  Tech-Support


Click for detailed spec.

IR100SD OBEX Server (IrDA Intelligent RS232 Adapter- OBEX Server)

  • Supports both IrDA Primary and Secondary mode, changeable via PC utility.
  • Supports mandatory IrDA layer: IrPHY, IrLAP, IrLMP and IAS.
  • Supports upper layers TinyTP, IrCOMM, IrLPT, and OBEX PUT/GET server.
  • No driver is needed.
  • Supports host baud rate from 1.2 kbps to 115.2 kbps. IrDA baud rate from 9.6 kbps to 115.2 kbps.
  • [Factory Default Setting]: Baud rate =115.2k bps;8N1;Ignore CTS/DSR = No; Device roll mode = Secondary only; Primary Protocol = OBEX TRANSPORT
  • IR frame and Host buffer are 2048 bytes separately.
  • Supply voltage: 6.0 V to 12 V.
  • Power consumption: 20 mA standby, 50 mA active. l Supports 3 wires host interface (Tx, Rx and GND).
  • Interface to Host:
    - Full-duplex asynchronous serial (TXD, RXD)
    - Hardware flow control (RTS, CTS)
    - Optional line status for link control (DTR, DSR)
    - Other unused inputs (RI, CD)
    - Designed for use in RS232C level and it is in
      DTE (Data Terminal Equipment) configuration.

Order | Price List  Tech-Support


Click for detailed spec.
ACT-IR224UN-Li2/Li "Animus Insulin pump (such as the Animas OneTouch Ping or Animas Vibe) patients require an ACTiSYS' IR224UN-Li2/IR224UN-Li infrared (IR) cable, to upload data!"
  • Supports baud rates: 9.6, 19.2, and 115.2 Kbps.

  • Fully compliant with USB 3.0 (also backward compatible with USB 2.0)

  • Supports Windows 11/10/8.1/8/7(32 & 64 bits)Vista/XP/2000, Android, Mac OS (both Intel & Power PC), Linux and Windows CE (both ARM & X86)
  • CD for setup & manual

Order | Price List  Tech-Support

Contact us for spec

IR224UN (PC or embedded USB to Raw SIR Serial Adapter, IrPHY Only)-Supports Windows 11/10/8.1/8/7/Vista, Android, Linux, Windows CE & Mac
  • Supports baud rates: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 Kbps.

  • USB interface; compatible with and directly replaces Raw IR RS232 adapters: IR220L+, IR220L, IR220Li and IR220LN

  • Customization to IR224UN-Li, IR224UN-L+, IR224UN-LN(96 ~115) at factory is OK. [Factory Default Setting] : IR224UN-LN115

  • Also compatible with competitors' models: IFSYS 8001A Level mode (=IR224UN-IF-level) & Pulse mode (=IR224UN-IF-pulse).
  • Fully compliant with USB 2.0
  • Supports Windows 11/10/8.1/8/7(32 & 64 bits)Vista/XP/2000, Android, Mac OS (both Intel & Power PC), Linux and Windows CE (both ARM & X86)
  • CD for setup & manual

Order | Price List  Tech-Support

Contact us for spec

IR224UN-L210 (USB connector of IR Serial Adapter, Compatible with Tekram IRMate IR210)-Supports Windows 11/10/8.1/8/7/Vista, Linux, Windows CE & Mac,
  • Supports baud rates: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 Kbps.

  • Compatible with Tekram IRMate IR210, as USB interface of IR adapter.

  • IR224UN-L210 vs IRMate IR210; IR410W-Comparison

  • IR pulse: 1.63μS.

  • No IrDA protocol supported, only Raw IR (IrPHY only).

  • Virtual COM port supported. Nothing or minimum change in users' software, which already worked well with original Raw IR RS232 adapters.

  • Less latency time, average 1.5 mS. Latency of a real COM port  is 0.5 mS.

  • Fully compliant with USB 3.0

  • 256 bytes outbound buffer and 256 bytes inbound buffer.

  • Supports Windows 2000/ XP/Vista/7/8/8.1/10/11, Mac OS, Linux and Windows CE.

Order | Price List  Tech-Support

Contact us for spec

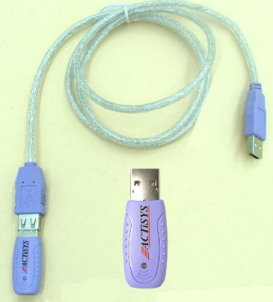

IR424UN (USB to Raw SIR Serial Adapter- Thumb sized, IrPHY Only)-Supports Windows 11/10/8.1/8/7/Vista, Android, Linux, Windows CE & Mac

  • A thumb sized option of IR224UN - housing similar to IR4002US, with Black case

  • Supports baud rates: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 Kbps.

  • USB interface; compatible with and directly replaces Raw IR RS232 adapters: IR220L+, IR220L, IR220Li and IR220LN and above USB adapter IR224UN

  • Customization to IR424UN-Li, IR424UN-LN(96 ~115) & IR424UN-L+ at factory is OK. [Factory Default Setting] : IR424UN-LN115
  • Also compatible with competitors' models: JetEye 9680 Level mode(=IR424UN-JE-level) & Pulse mode(=IR424UN-JE-pulse),, IFSYS 8001A Level mode (=IR424UN-IF-level) & Pulse mode(=IR424UN-IF-pulse)
  • Fully compliant with USB 2.0
  • Supports Windows 11/10/8.1/8/7(32 & 64 bits)Vista/XP/2000, Android, Mac OS (both Intel & Power PC), Linux and Windows CE (both ARM & X86)
  • CD for setup & manual
Order | Price List  Tech-Support

Contact us for spec

  Instantly Convert RS232 Cable to RAW IR, Without Special IR SW!
IR220LN, IR200Li (PC or Embedded RS232 Cable Replacement, IrPHY Only)
  • Instantly convert RS232 Port to RAW IR, without any IrDA protocol SW and use existing application SW.

  • True cable-to-IR replacement using IrDA component, but not IrDA protocol SW.

  • No SW Modification Required: Single IR Speed using IR220LN/Li.

  • Since they are all RAW IR and OS independent, so it is workable for all Windows and other O.S.

Order | Price List  Tech-Support


Click for detailed spec.

IR Long Distance Embedded RS232 Adapter
IR320L (Embedded Infrared RS232 Adapter-30 Meters)
  Long Distance Infrared Adapter
  • Long distance transmitting / receiving adapter by using 455 KHz ASK-IR technology.
  • Supports maximum 30 meters transmitting / receiving distance.
  • Supports 9.6 kbps, 19.2 kbps and 38.4 kbps baud rate.
  • Instantly converts RS232 Port to IR, without special IrDA protocol SW and uses existing application SW.
  • True cable-to-IR replacement using ASK-IR technology.
  • No buffer in circuit, no delay caused.
  • You should use it in pairs.

Order | Price List  Tech-Support


Click for detailed spec.
IrDA Protocol IC
IR826xD Series: IrDA Protocol Processor IC ; With (IR Transceiver Bundle) available
  • ACT-IR8260D /ACT-IR8261D (or briefly, ACT-IR826xD) has a complete IrDA® Protocol stack in a single chip.
  • ACT-IR8261D has more buffer than ACT-IR8260D. This is the only difference between them.
  • Buffer size:



    Buffer (Bytes)



    Host Inbound

    Host Outbound

    IrDA In Frames

    IrDA Out Frames

    Total

    ACT-IR8261D

    2K

    2K

    1K

    1K

    6K

    ACT-IR8260D

    1K

    1K

    0.5K

    0.5K

    3K


  • No any driver needed.
  • Includes IrPHY encoding/decoding and interfaces directly to Infrared transceivers for data rate up to 115.2 kbps. Only an external Infrared transceiver is needed to complete an IrDA compliant infrared communication subsystem.
  • Supports mandatory IrDA layers: IrPHY, IrLAP, IrLMP and IAS.
  • Supports upper layers: TinyTP, IrCOMM, IrLPT, and OBEX.
  • Supports host baud rate: 1.2 kbps to 115.2 kbps, which is changed by PC configuration utility or hardware jumper. IrDA baud rate: 9.6 kbps to 115.2 kbps, which is flexible, setting by IrDA devices.
  • Supports both IrDA Primary and Secondary modes.
  • Small low profile plastic 64-pin QFP package.
  • Available in programmed and tested chips, assembled & tested boards, or fully packaged dongles. All passed IrDA- "IrReadyTM" certification tests!
  • A ready-made IrDA-compatible evaluation dongles ACT-IR100UD-v2 is available.
  • ACT-IR826xDEK = ACT-IR826xDDB (Daughter Board) + ACT-IR8260DMB (Mother Board with USB Virtual COM port support). Before purchasing this IC, strongly recommend to buy this Evaluation Kit. Default is ACT-IR8260DEK, which used IR8260D on Daughter Board IR8260DDB. Optional is ACT-IR8261DEK, which used IR8261D on Daughter Board IR8261DDB.
  • ACT-IR100UDK-v2: Evaluation Kit Full Set (=ACT-IR100UD-v2 + ACT-IR4002US/4000US or IR2002US/2000US). This kit can evaluate data transmission between ACT-IR100UD-v2 (your device) and ACT-IR4002US (PC), running under HyperTerm.
    It can avoid debugging multiple issues at the same time.

          Order | Price List  Tech-Support

IR8250P: IrDA Compliant Protocol Processor

  • A complete IrDA Protocol stack in a single chip, including mandatory protocols (IrPHY, IrLAP, IrLMP) and optional protocols (IrLPT, IrCOMM+TinyTP, OBEX transport or TinyTP with customized IASTM class name for IrSocket).
  • Small Size, low price , low power consumption, Secondary only, easy to implement into embedded systems

  • Includes IrPHY encoding/decoding, and interfaces directly to IR transceivers for data rate from 9.6 kbps up to 115.2 kbps. Only an external IR transceiver is needed to complete an IrDA compliant IR communication subsystem.
  • Supports 64 bytes data packet for IrDA IrLAP frame.

  • Supports host baud rate from 300 kbps to 115.2 kbps selecting by programmable settings.

  • 28-pin SSOP/TSSOP package.

  • In-system-programmable FLASH, facilitates firmware changes or updates.

IR8250PEK: IR8250P Evaluation Kit, including IR82x0PMB (Mother Board), IR8250PDB (Daughter Board), & Self-downloadable SW to program IR8250P firmware
IR8250SW :
Easy customized setting, Re-Programming Windows Software for Evaluation Kit, IR8250PEK

IR
8250P & MCP215x Comparison-Introduction

Order | Price List  Tech-Support


Click for detailed spec.

IR82x0D: IrDA Compliant Protocol Processor

  • IrLAP, IrLMP, IAS, IrCOMM-3 & 9 wire, TinyTP, IrLPT, IrObex Transport, compliant with IrDA-IrReady certification requirement
  • IrDA baud rates supported: 9.6K-115.2K bps
  • UART rates: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2K bps
  • Software selectable UART rate, protocol layers, modem settings
  • Also, jumper-hardwire parameter selection for volume production.

  • Secondary, Primary, or primary + secondary stack, single chip, software or hardware-selection of RS232 data, primary/secondary, and IrDA protocol parameters, large buffer size for IrDA and host interface. Supports all IrDA application protocol layers including OBEX 8Kbyte (IR8200D) /2Kbyte (IR8210D) on chip SRAM.

 IR82x0D-EK: = ACT-IR82x0D + ACT-IR100SD/IR100UD. Before purchasing ACT-IR82x0D chip, strongly recommend to buy a set of Evaluation Kit:

IR8200D OBEX Server: Full secondary, Primary, or primary+secondary stack, single chip, software or hardware-selection of RS232 data, primary/secondary, and IrDA protocol parameters, large buffer size for IrDA and host interface. Supports all IrDA application protocol layers including OBEX Server (PUT/GET). 8Kbyte on chip SRAM.

Order | Price List  Tech-Support


Click for detailed spec
IrDA SIR Encoder/Decoder IC
IR220VACF (IrDA-1.0 Encode/Decode IC)
  • Device is O.S. independent and does not need any driver.
  • Products using IR220VACF already passed the tough " IrReady" certification test.
  • Compatible with all brands of IrDA transceivers.
  • In volume applications since 2002.
  • IrPHY encoding/decoding and interfaces directly to IrDA transceivers.
  • 3 V to 5.5 V operating voltage.
  • Using minimum pulse duration of 1.63 µs to modulate bit data.
  • Programmable baud clock generator (9600bps to 115.2 Kbps) 5 baud rates.
  • Low operating current.
  • SOP14 -- package.
  • Optional with EK (Evaluation Kit) is available

Order | Price List  Tech-Support


Click for detailed spec.
IrFM - IrDA Wireless Mobile Payment
  IrDA Fast Connect Development/Test Suite
IR303FM (IrFM with Fast Connect Debug/Test Suite, Hardware and Software)
The Fast Connect Development/Test Suite (ACT-IR303FM) is a set of hardware and software products designed to test and debug Fast Connect for IrFM PTD and/or POS under development.

Benefits of ACT-IR303FM Suite:

  • Facilitates testing and debugging of Fast Connect for IrFM PTD and/or POS.
  • Promotes inter-operability of Fast Connect for IrFM PTD and POS.
  • Speeds up the IrDA certification process.
  • Speeds up time to market.

Hardware/Software products Included in the Suite:

  • IrFM PTD Fast Connect Simulator Hardware (IR203L and SW (ACTiLinkPTD).
  • IrFM POS Fast Connect Simulator Hardware (IR223L) and SW (ACTiLinkPOS).
  • Fast Connect Recording Hardware (IR910D) and Software (IR912SW).
  • Fast Connect Recording Analyzer Software (IR913SW).

Order | Price List  Tech-Support


Click for detailed spec.



Click for detailed spec.
  IrFM POS Adapter and Protocol IC
IR103SL/SLi/IR8203L (IrFM POS/Host RS232 Adapter, Internal Module & Protocol IC)
IrFM POS Front End Adapter is a sub-assembly designed specifically to handle the lower level IrDA protocol layers for IrFM POS. It is a ready to use, assembled and tested hardware/firmware sub-assembly that handles IrPHY, IrLAP(including Fast Connect), IrLMP (including IAS for IrFM OBEX), and TinyTP. Physically, it can be as external RS232 adapter (IR103SL),internal PCB(IE103SLi),or protocol IC(IR8203L).

Features of IR103SL & IR8203L:

  • Simple wired serial interface to the hosting IrFM POS.
  • Automatically handles Fast Connection. Newly published by IrDA, January 15,2003)without burdening the hosting IrFM POS.
  • Efficiently and automatically handles the minimum turnaround, maximum turnaround, and all time critical requirements.
  • Compliant to IrDA requirements for IrPHY and IrLAP layers.
  • Very low component count. Small and modular in construction.
  • Low cost, low power.

Order | Price List  Tech-Support


Click for detailed spec.
IrDA Hand-held Tester
IR3200M+IR3200SW (Hand-held BER/Bit Error Rate Tester and Software)
  • Connecting it to the notebook USB Port, facing the FIR window to do simple loop test!
  • Pocket size, 4 AA battery operated. Test status indicated by LED's or audio.
  • To easily test IrDA-enabled PDA, smart cell phone, data terminal, printer, sub notebook, etc.
  • Using a fixture driven by the second IR3200M, you can test IrDA transceiver modules!

Order | Price List  Tech-Support


Click for detailed spec.
  IrDA Protocol Probe
IR910D+IR910SW (IrDA Protocol Probe Monitor and Debug Software)
  • IR910D (Dual IR head adapter) and IR910SW work together to record IrDA protocol conversation from 9.6K to 115.2 Kbps.
  • It is a very useful tool to visualize the actual IrDA communication traffic, translated into IrDA data packet frame structure, as well as the timing information, making debugging more effective and accurate.
  • It not only records IrDA data traffic but also the valuable timing information down to byte level which is shown in the LOG_PHY.TXT output file.
  • It does not decode or interpret OBEX or any layers above IrLMP layer, but all the information is preserved for you to read, e.g. Output LOG_LMP.TXT sample is an OBEX session.
  • It is a three-step process. Step one is to record the IrDA traffic. Step two is to translate the recorded data to text files. And step three is to view the text files. Each step has the associated software module to enable such functions.
  • The recorded data is written into a binary file LOG_RAW.BIN. This file can be analyzed and translated into text files.
  • You may use any editor or word processor to view the ASCII text files generated. These text files are almost self-explanatory.

Order | Price List  Tech-Support


Click for detailed spec.

IR9201 (IrDA Intensity Meter)

  • To capture IR transmitter intensity
  • Maximum IR pulse frequency supported: 0.625 MHz (applicable up to SIR 115.2 kbps)
  • Easy to measure IR optical power, no need to know hardware details
  • Easy to interface with oscilloscope using BNC cable
  • Power: 9 V DC, 6F22DT battery

Order | Price List  Tech-Support


Click for detailed spec.

IR2000B/L: IrDA ISA-Bus Add-On Card with Adapter

  • Gives you the full IrDA speeds from 9.6K to 4Mbps!
  • Plugs into any desktop PC motherboard. IrDA adapter included.

Order | Price List  Tech-Support


Click for
detailed spec.
ACTiSYS Sharp Zaurus/Wizard Accessories

ACTiSYS is the Oldest and Leading PDA peripheral supplier, since 1989! We provide the Only IR device for Both Wizard and Zaurus! One pocket fax modem for Both PDAs and PCs! Intelligent cables are FCC approved & drain no battery power from PDAs!



  • ACTiSYS Accessories Compatibility List:
    • ACT1-101: PC Direct Link Cable
    • ACT1-105: PC Direct Link Cable for YO
    • ACT1-103: Mac Direct Link Cable
    • ACT-IR3S+: ASK Wireless printing and file transfer in one unit for Sharp Zaurus, Wizard
    • ACT-IR200L:  IrDA/ASK Wireless  file transfer in one unit for Sharp Zaurus, Wizard
  • Accessories For ACT-IR Devices



[ Home Page | About ACTiSYS | Contact us | IrDA Products | Tutorials | IrDA Test Center | Compatibility

| Order | Price Quote | Technical Support | Downloads | Track a Package | Jobs | Feedback | Privacy | Terms ]

ACTiSYS CORP.  | 921 Corporate Way | Fremont, CA 94539 | Tel:+1-510-490-8024 |  Fax: +1-510-623-7268 |  irda-info@actisys.com

© 1996-2015 ACTiSYS Corporation, All Rights Reserved


--------------------------------------------------------------------------------------------------
Member of Infrared Data Association
® (IrDA) Since Its Founding Day!
